新型热继电器过载保护研究
宗鸣,宫赫
Research on Overload Protection of New Type Thermal Relay
Zong Ming,Gong He

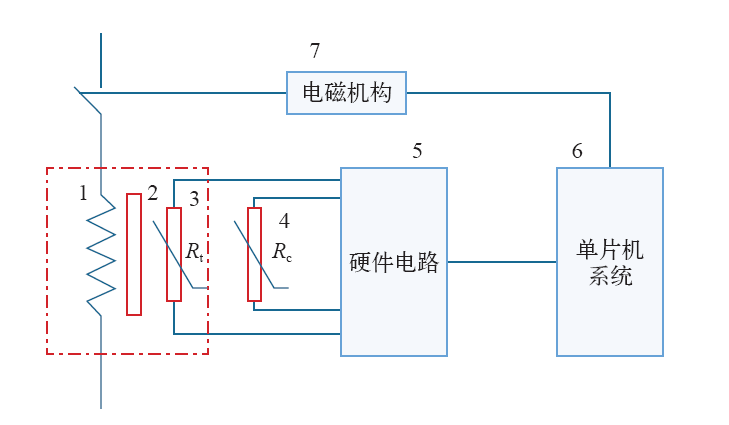

图1
热电混合式过载保护系统
1—热元件 2—绝缘材料 3—温度传感器 4—补偿温度传感器 5—硬件电路 6—单片机系统 7—电磁机构
Fig.1
Thermo-electric mixed type overload protection system
