不平衡情况下逆变型分布式电源并网控制策略研究

陶维青,顾芝瑕,丁明,王乐勤,李嘉茜

Research on Control Strategy of Grid-Connected Inverter under Unbalanced Voltage Conditions

Weiqing Tao,Zhixia Gu,Ming Ding,Leqin Wang,Jiaxi Li

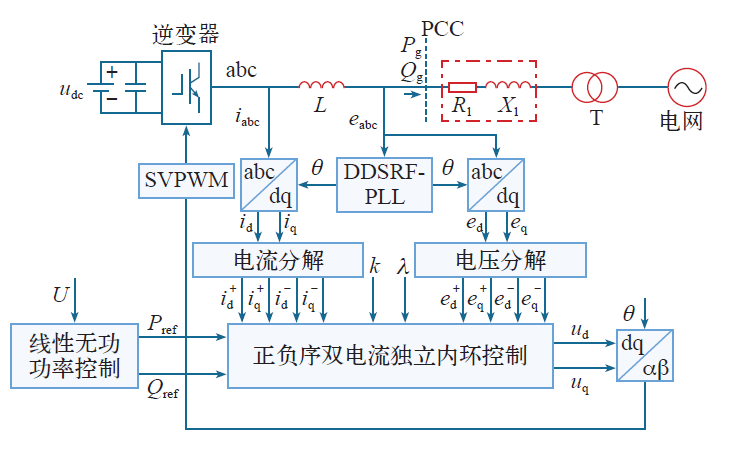

图5 并网逆变器总控制框图

Fig.5 Overall control block diagram ofthe grid-connected inverter
